Article Content

Article Summary: Guide general troubleshooting of your OptiPlex FX100 system.

BIOS Level Access to System

At launch it is not possible to access anything at the BIOS level for the system you are connecting to. If a message such as F1 to continue/F2 to run system setup (onscreen error message) appears on the computer you are attempting to connect to a specialized message appears.

Network Connection

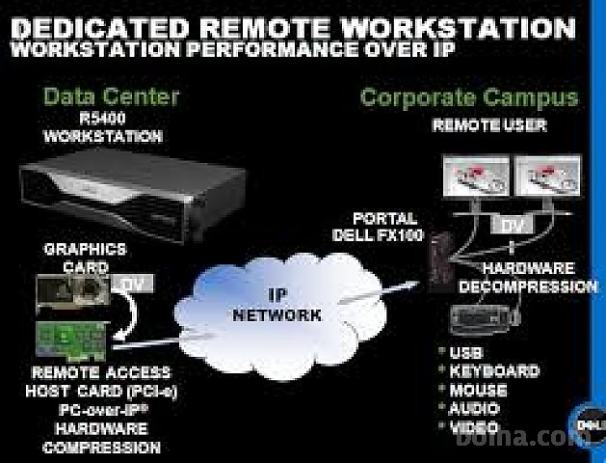

If the customer is experiencing network connection problems during setup, ensure the network cable is connected to the RJ-45 connector on the remote access host card as well as the primary RJ-45 connector on the Precision R5400 system.

Device Detection

When the remote access host card is installed in the host system, Precision R5400, it is completely undetected by the operating system. There are no visible signs of it in the Device Manager. This also means that no drivers are required for installation.

Vista 64-bit and No Audio

Customers wanting Vista 64-bit operating system need to download the latest host card and portal firmware from Dell support. Vista 64-bit is shipped with audio disabled from the factory. There is no plan at this time to factory install this update. If using the Remote Access Host Card on a system with Vista 64-bit (i.e.

Audio Diagnostics

Audio problems with the portal can also be troubleshot from the management computer by accessing the web interface. Once logged into the web interface navigate to the Diagnostics > Audio screen. Click the Start button to begin the test. The test emits audio from speakers or headphones attached to the portal.

Video Diagnostics

Through the portal web interface it is possible to run a diagnostic on the display. Navigate to the Diagnostics < Display screen and click the Start button to begin the test and Stop to end it.

Find the best download for your system

We're sorry, the driver you are looking for is no longer available. Please enter your product details to view the latest driver information for your system.

Fixes & Enhancements

VMware View 4.5 and View 4.6 deployments using zero client devices to connect to View virtual desktops should install release 3.3.0 on the zero client devices.

Importance

Dell Technologies recommends applying this update during your next scheduled update cycle. The update contains changes to maintain overall system health. It ensures that the system software remains current and compatible with other system modules (firmware, BIOS, drivers, and software) and may include other new features.
