Complete the following steps to set up Web Server Remote Access for the Honeywell Home Tuxedo:
- 1. Connect Tuxedo to WIFI. The Tuxedo must be on a WIFI network for you to connect with it through a web browser. Begin from the main screen of the ...
- 2. Create Remote Access Account: From the System WIFI Menu, press the Return Arrow in the upper-left to return to the Setup Menu. Then choose Account ...
- 3. Obtain the IP Address. From the Account Menu, press the Return Arrow in the upper-left corner to return to the Setup Menu. Then choose System Info ...
- 4. Access Tuxedo virtual interface. Go to a WIFI-connected device that is on the same WIFI network as the Tuxedo. Open up one of the supported web ...
What is Honeywell Tuxedo touch?

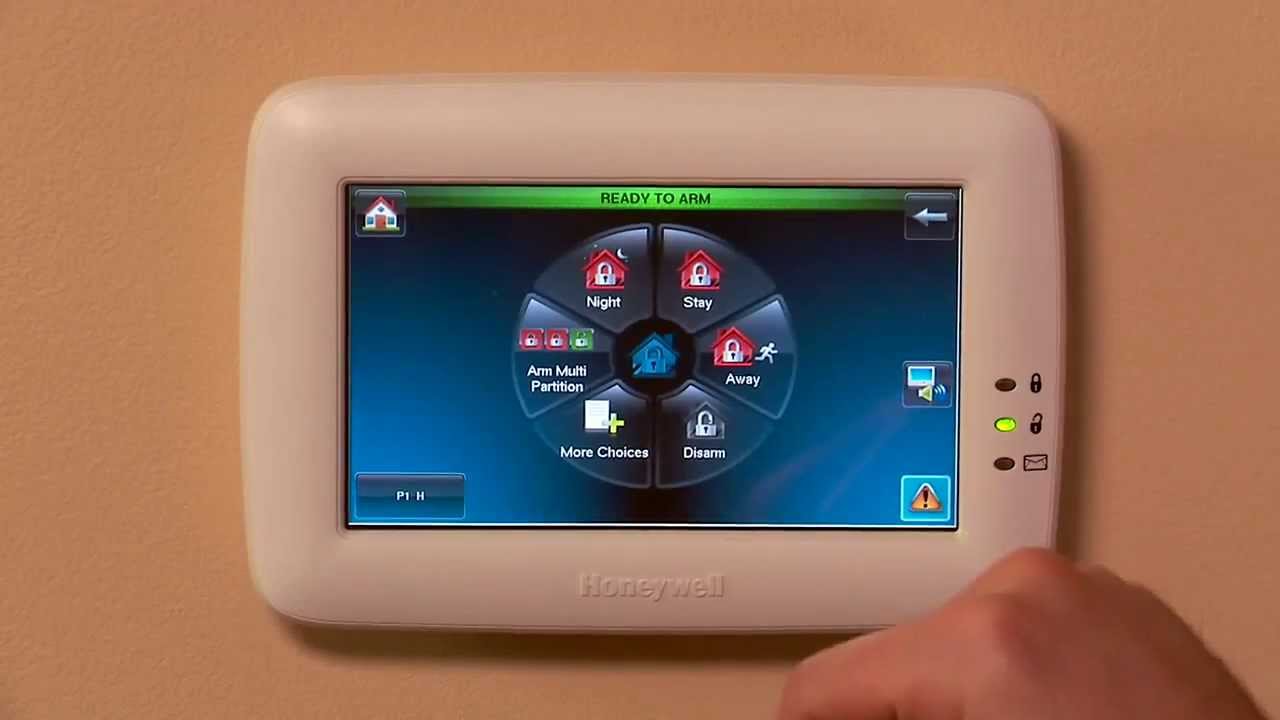

Register today Honeywell’s Tuxedo Touch is a 7", high-resolution graphic touchscreen that functions as an integrated security system keypad, home controller, camera viewer and digital picture frame in one.
Is the Tuxedo touch WiFi compatible with total connect?
Honeywell has indicated that the Tuxedo Touch WIFI will be receiving a firmware upgrade in April 2013 that will make it compatible with all of the Total Connect features, including remote home automation, but software updates are not always on schedule so there is no telling when exactly the Total Connect support for the Tuxedo will be available.
Does Tuxedo touch WiFi work with Honeywell Vista 21p?
The Tuxedo Touch WiFi initially worked fairly well with my Honeywell Vista 21P. Wanted the Z-wave features for automation, and seemed useful for monitoring the cameras. Turns out not really useful for cameras because very difficult to get a compatible camera to display good resolution.
How do I get remote access to my Honeywell device?
Remote Access 1 Request Service Note: You must be connected to the Honeywell Network to request a Remote Access account. Click here to start your request. 2 Request Digital Certificate A Digital Certificate is required to securely connect to Remote Access. Click here to start your request. 3 Download Software
How do I connect my Honeywell tux to WIFI?
1:414:55Connecting the Honeywell Tuxedo Touch To WIFI - YouTubeYouTubeStart of suggested clipEnd of suggested clipAfter we're there we're going to go to ip. Once we're in ip. Very important you want to make sureMoreAfter we're there we're going to go to ip. Once we're in ip. Very important you want to make sure bottom left hand corner. Makes your lan is set to off all right wi-fi is set to on.
How do I change my Honeywell Tuxedo password?
Enter the following command to change the Master Code: [Current Master Code] + [8] + [02] + [New Master Code] + [New Master Code Again]. The Tuxedo Touch WIFI Keypad will beep to confirm that the code has been changed.
How do you program a Honeywell Tuxedo?
Complete the following steps to program your Honeywell VISTA System using Console Mode on your Tuxedo Touch Keypad:Enter Console Mode. Start from the main screen of your Tuxedo Touch Keypad. ... Program the system. ... Exit programming and reboot.
How do I update my Honeywell Tuxedo?
Insert the SD card into the Tuxedo Touch. Then use a paper clip to push the reset button and reset the device. The firmware update should begin automatically after the reset. It should take about one minute for the firmware update to complete.
How do I reset my Honeywell tux?
1:118:54Resetting the Honeywell Home Tuxedo Keypad - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe the refresh uh we press the gear icon we're at the main screen first of all and then we pressMoreThe the refresh uh we press the gear icon we're at the main screen first of all and then we press the gear icon at the bottom of the screen. And then we choose uh system setup.
How do I change the PIN on my Honeywell alarm?
0:001:05How to change your master code on a Honeywell security system - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd then hit eight zero two now hit your new code twice I'm going to change it to one four three twoMoreAnd then hit eight zero two now hit your new code twice I'm going to change it to one four three two one I'm gonna change it to four three two one you hit your code twice. Now let's do it again.
How do you address a tuxedo keypad?
0:345:01Checking the ECP and RIS Address On a Tuxedo - YouTubeYouTubeStart of suggested clipEnd of suggested clipCode now assuming you have your tuxedo connected with a vista system then it's going to be 4112. AsMoreCode now assuming you have your tuxedo connected with a vista system then it's going to be 4112. As the default.
How do you program Z-Wave?
2:335:33Getting Into Z-Wave Programming on a Honeywell Home TuxedoYouTubeStart of suggested clipEnd of suggested clipJust simple as that if we want to add the device we'll click on add device and now it's asking us toMoreJust simple as that if we want to add the device we'll click on add device and now it's asking us to add and we press the same button on the lock.
How do you delete a zone on a Honeywell alarm system?
To do so, follow these steps:Enter zone programming. From the home screen, press Security > More (Lynx Touch Only) > Tools > Enter Installer Code (default is 4112) > Program > Zones. ... Delete the zone. From the zone screen, highlight the zone you wish to remove. ... Exit Programming.
How do I update my Honeywell firmware?
How to update Honeywell scanner firmware.Click on the “Software” tab and scroll down to “Firmware”.Save the . MOC file to your hard drive so that you can grab it later. ... Connect your scanner to your computer via USB.Open EZConfig.Click “Connected Device”. See below.
How do I reset my Honeywell alarm keypad?
How to reset the installer codeUnplug the transformer from the power source.Disconnect the battery.Plug the transformer back in.Reconnect the battery.Within 30 seconds of turning the alarm system on, press * and # at the same time. ... Enter *20.Enter a new 4 digit installer code. ... Press *99 to exit programming mode.
How do I reset my Honeywell Control Panel?
Resetting a Honeywell ThermostatPower off the thermostat and remove the batteries.Put the batteries in the wrong way, with negative to positive and positive to negative.Wait ten seconds and put them back in the correct way.Your thermostat will be reset to factory settings.
How do I reset my Honeywell 6280?
The easiest method is to press and hold the reset button on the back of the 6280. This button is found underneath the message LED light on the back side. You should use a thin object to press and hold the button until the reset goes through. A paperclip or a thumbtack should work just fine.
How do I stop my Honeywell alarm from beeping?
How to turn the Chime mode off on your Honeywell alarm system:Key in your four-digit security code.Press 9 (CHIME).The Chime message will be removed from the screen.
Description
In this video, Michael from Alarm Grid shows you how to set up the web server for a Honeywell Tuxedo or Honeywell Tuxedo Touch Keypad for a Honeywell VISTA Security System.
Transcript
Hi, DIYers. This is Michael from Alarm Grid, and today I'm going to be showing you how to set up the web server for your Tuxedo keypad for your Honeywell VISTA security system.
How many wires does a Honeywell tuxedo keypad have?
Just like any other keypad for a VISTA Panel, the Honeywell Home Tuxedo uses a 4-wire connection. Two (2) of the wires are for power, and the other two are for data transmissions between the keypad and the panel. Make sure to power down your VISTA System before connecting the keypad.
What is a tuxedo keypad?
The Honeywell Home Tuxedo is a state-of-the-art touchscreen keypad for Honeywell VISTA Alarm Systems. This sleek and modern keypad offers a convenient way to control your VISTA System, and it also functions as a Z-Wave Plus controller for building a complete smart home automation network.
Does the tuxedo touch have a built in wifi card?
Just like the second generation Tuxedo Touch WIFI, the new Tuxedo Keypad has a built-in WIFI card for communicating with Total Connect 2.0. This is also how the Tuxedo receives firmware updates from AlarmNet. The new Tuxedo Keypad can only connect to IP using WIFI. It cannot support a wired ethernet connection.
What is a Z wave light?
Z-Wave lights can make it appear like you're home while you're on vacation. A smart Z-Wave thermostat can save you money in the long run by cutting down on energy costs. And a Z-Wave door lock can really come in handy if you need to let a friend inside while you're away.
Does the Tuxedo have a live feed?
The Tuxedo even offers camera support for displaying the live video feed for compatible security cameras right on its screen. Up to 32 IP cameras can be configured in this way. Supported cameras include the legacy Honeywell IP Cameras, as well as specific third party cameras on the same WIFI network as the Tuxedo.
Does the Tuxedo have an Ethernet connection?
It cannot support a wired ethernet connection. Also be aware that the Tuxedo does not serve as an IP communicator for the VISTA System. The keypad does not provide any system status updates to AlarmNet or TC2. Its internet connection is only for relaying Z-Wave status and commands and receiving OTA firmware updates.
